產(chǎn)品介紹

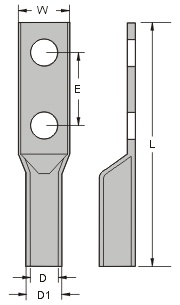

1507 KSS 高壓長型端子(雙孔式)







單位：mm
	型　號 Item No.	螺絲孔	尺寸					電線規(guī)格
			W	L	E	D	D1	AWG	mm2
	CL14-8-2D	8.4	12.0	120.0	45.0	5.8	8.8	6	10.6 ~ 16.7
	CL22-8-2D	8.4	15.0	120.0	45.0	7.7	10.6	4	16.8 ~ 26.6
	CL22-10-2D	10.5	15.0	120.0	45.0
	CL38-10-2D	10.5	18.3	120.0	45.0	9.8	12.4	2	26.7 ~ 42.4
	CL38-12-2D	13.0	18.3	120.0	45.0
	CL60-10-2D	10.5	20.5	130.0	45.0	11.0	14.0	1/0	42.5 ~ 60.5
	CL60-12-2D	13.0	21.4	130.0	45.0
	CL80-12-2D	13.0	23.2	130.0	45.0	13.0	16.0	3/0	76.3 ~ 97.0
	CL100-12-2D	13.0	26.0	132.0	45.0	14.0	18.0	4/0	96.3 ~ 117.0
	CL125-12-2D	13.0	28.0	135.0	45.0	16.0	20.0	250 mcm	127.0
	CL150-12-2D	13.0	31.0	150.0	45.0	17.0	22.0	300 mcm	152.0
	CL180-12-2D	13.0	33.0	150.0	45.0	18.2	23.0	350 mcm	177.0
	CL200-12-2D	13.0	36.0	150.0	45.0	20.0	26.0	400 mcm	203.0
	CL250-12-2D	13.0	40.0	150.0	45.0	22.0	28.0	500 mcm	253.0
	CL325-12-2D	13.0	45.0	180.0	45.0	25.0	32.0	650 mcm	325.0
	CL400-12-2D	13.0	48.0	180.0	45.0	30.0	37.0	800 mcm	500.0
	CL500-12-2D	13.0	56.0	180.0	45.0	31.0	40.0	1000 mcm	500.0
